MODEL
|

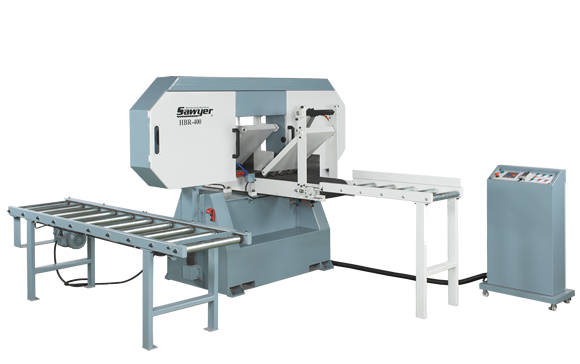

NT-HBR-400
|
|
MAXIMUM CUTTING CAPACITY(W×H)
|
16-1/2"×16-1/8" (420×410 mm)
|
|
DISTANCE FROM BLADE TO CONVEYOR
|
1/4"×10- 5/8" (5-270mm)
|
|
MINIMUM CUT THICKNESS
|
5mm
|
|
SAW WHEEL DIAMETER
|
32"×2 (800 mm×2)
|
|
SAWBLADE LENGHT
|
5860 ~5870 mm
|
|
SAWBLADE WIDTH
|
2"
|
|
SAWBLADE SPEED
|
6150 FPM
|
|
CONVEYOR BELT SIZES (W×L)
|
16"×165- 1/2" (400×4200 mm)
|
|
FEED SPEED (VARIABLE)
|
40" m/min
|
|
RETURN CONVEYOR SIZE
|
100-3/8"×24-3/4" 32 1/2"(2550×630×825mm)
|
|
CONVEYOR HEIGHT FROM FLOOR
|
40" (1016 mm)
|
|
RETURN CONVEYOR MOTOR/INVERTER MOTOR
|
1HP 3Ø / 2HP 3Ø
|
|
SAW WHEEL MOTOR
|
30HP (option 30 HP )
|
|
BLADE LIFT MOTOR
|
1/2 HP
|
|
DUST HOOD OUTLET DIAMETER
|
100 mm×2 (4"×2)
|
|
MACHINE DIMENSIONS (L×W×H)
|
128"×130"×79" (3250×3300×2000 mm)
|
|
PACKING DIMENSIONS (L×W×H)
|
108"×89"×87" (2750×2250×2200 mm)
|
|
NET WEIGHT / GROSS WEIGHT
|
1960 kgs ( 4312 lbs ) / 2160 kgs ( 4752
lbs)
|
