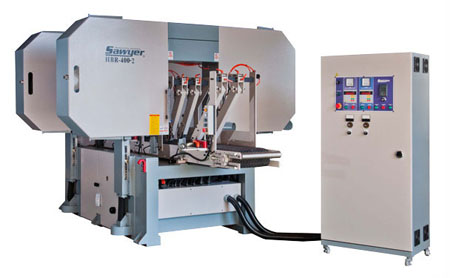

HBR-400-2 MULTIPLE HEAD HORIZONTAL BAND SAW
Oil Mist Cooling System (Standard Equipment) • The machine employs an oil mist cooling system, providing high efficiency cooling for the
blade. It also removes any chips on blade teeth and enormously extends service lile 01 blade • Cooling and lubrication time on saw wheel can be set as desirød
Auxiliary Control Box • Each sawhead is equipped with one control
box,providing added convenience for blade
setting.
Blade Tension & Tracking • Blade tension is controlled by air/hydraulic
combination system, ensuring correct tension
control at any time • Blade tension is indicated by a tension
gauge • Blade tracking is adjusled by lurning a
handwheel.
Specification:
Model
HBR400-2
Maximum Cutting Capacity
12"× 16 "(400×400 mm)
Distance From Blade To Conveyor
1/4"~12"(5~300mm) / (2~300mm)
Minimum Cut Piece
2 ~5mm
Saw Wheel Diameter
28"(700mm)/32"(800mm)/36"(915mm)
Saw Blade Length
196"(4980mm) / 231"(5860mm) / 238 1/2"(6060mm)
Saw Blade Width
2~4"(50~100mm)
Conveyor Belt Sizes(W×H)
16"×307"(400×7800mm)
Feed Speed(Feed Speed)
0~30 m/min
Conveyor Height From Floor
37"(940mm)
Saw Wheel Motor
20~40 HP
Blade Lift Motor
1/2 HP
Feeding Motor
5HP
Dust Hood Outlet Diameter
4"×3 FOR ONE HEAD
Design and specifications are subject to change without prior notice.
