PRODUCT
◆ LOCATION：HOME-PRODUCT

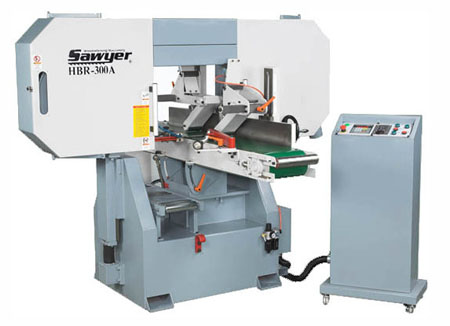

HBR-300A

HBR-300A saw major new aircraft, precision, processing ability, perfect performance efficiency.

Performance exceeded the same kind, the minimum thickness of wood 2mm, accuracy of ± 0.10mm, suitable for composite floor.






 Oil Mist Cooling System(Standard Equipment)

  • The machine employs an oil mist cooling system,

    providing high efficiency cooling for the blade.

    It also removes any chips on blade teeth and

    enormously extends service life of blade.
  • Cooling and lubrication time on saw wheel can be

    set as desired.














Tilting Feed Conveyor (HBR-300A)
• The feed conveyor can tilt to a maximum of

  30°,front downward for bevel cuts.
• The feed conveyor tilting is made by turning a

  large.
• handwheel for effortless operation.
• A degree scale is attached to indicate the tilting

  degree.




Air Loaded Pressure Roller
• Eliminating the conventional spring laded pressure

  rollers,this machine employs air loaded pressure

  rollers.

• Especially when cutting wood of various

  thicknesses, the air load savestime on adjusting

  pressure roller position while increasing

  operational convenience.
• Pressure roller are easily adjusted in the

  vertical directions.to suit various wood

  thicknesses.
• Maximum pressing thickness is 200mm.



Blade Tension & Tracking
• Blade tension is controlled by air/hydraulic

  combination system,ensuring correct tension

  control at any time.
• Blade tension is indicated by a tension gauge.
• Blade tracking is adjusted by turning a

  handwheel.

Specifination:

Model

HBR-300A

HBR-400A

Maximum Cutting Capacity(W×H)

12"× 8"(300×200 mm)

16"×8"(400×200mm)

Manimum Cut piece

2 mm

2 mm

Saw Whell Diameter

28"(700mm)

28"(700mm)

Saw Blade Length

196"(4980mm)

196"(4980mm)

Saw Blade Width

2~3"(50~75mm)

2~3"(50~75mm)

Conveyor Belt Sizes(WxH)

270×4200 mm

400×4200mm

Feed Speed(Variable)

0~30 m/min

0~30 m/min

Conveyor Height From Floor

40"(1016 mm)

40"(1016 mm)

Saw Wheel Motor

20 HP

30 HP

Blade Lift Motor

1/2 HP

1/2 HP

Feeding Motor

1 HP

2 HP

Dust Hood Outlet Diameter

4"

4"

Packing Dimension

230 × 220 × 210 cm

230 × 220 × 210 cm

Net Weight /Gross Weight

1465 kg / 1590kg

1635 kg / 1760 kg


Design and specifications are subject to change without prior notice.



Standard Equipment:

20HP saw wheel motor

Blade lift inverter controlled conveyor feed

Feed conveyor title 1 °~30°

One 1 1/4" sawblade

Tool box with service tools
