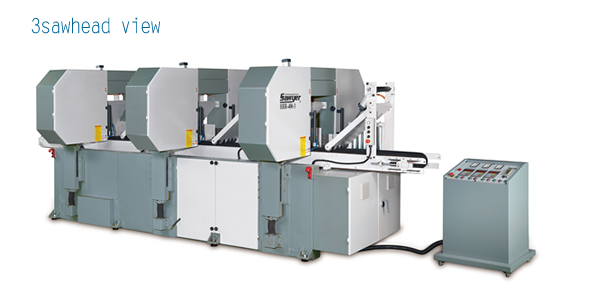

HBR-400-2 MULTIPLE HEAD HORIZONTAL BAND SAW
Oil Mist Cooling System (Standard Equipment)
• The machine employs an oil mist cooling system, providing high efficiency cooling for the
blade. It also removes any chips on blade teeth and enormously extends service lile 01 blade
• Cooling and lubrication time on saw wheel can be set as desirød
Auxiliary Control Box
• Each sawhead is equipped with one control
box,providing added convenience for blade
setting.
Blade Tension & Tracking
• Blade tension is controlled by
air/hydraulic combination
system, ensuring correct tension
control at any time
• Blade tension is indicated by a tension
gauge
• Blade tracking is adjusled by lurning a
handwheel.
Specification:
Model
HBR400-3
Maximum Cutting Capacity(WxH))
16"× 16" (400×400 mm)
Distance From Blade To Conveyor
1/4"~12" (5~300mm) / (2~300mm)
Minimum Cut Piece
2~5 mm
Saw Wheel Diameter
28"× 2 (700 mm × 2) / 32"(800mm) / 36"(915mm)
Saw Blade Length
196"(4980mm) 231"(5860mm) / 238 1/2"(6060mm)
Saw Blade Width
2~4"(50~100mm)
Conveyor Belt Sizes(WxH)
16"×307" (400mm×7800mm)
Feed Speed(Variable)
0~30m/min
Conveyor Height From Floor
37"(940mm)
Saw Wheel Motor
20~40HP
Blade Lift Motor
1/2HP
Feeding Motor
5HP
Dust Hood Outlet Diameter
4" × 3 FOR ONE HEAD
Design and specifications are subject to change without prior notice.
