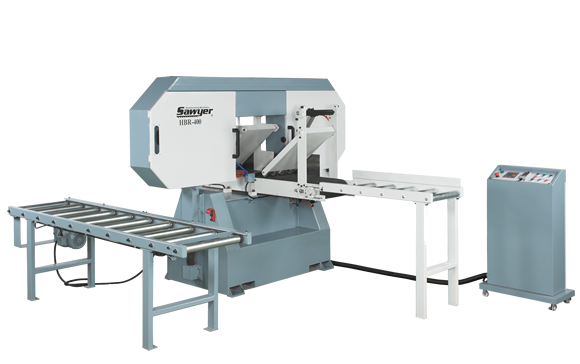

MODEL

NT-HBR-400

MAXIMUM CUTTING CAPACITY(W×H)

16-1/2"×16-1/8" (420×410 mm)

DISTANCE FROM BLADE TO CONVEYOR

1/4"×10- 5/8" (5-270mm)

MINIMUM CUT THICKNESS

5mm

SAW WHEEL DIAMETER

32"×2 (800 mm×2)

SAWBLADE LENGHT

5860 ~5870 mm

SAWBLADE WIDTH

2"

SAWBLADE SPEED

6150 FPM

CONVEYOR BELT SIZES (W×L)

16"×165- 1/2" (400×4200 mm)

FEED SPEED (VARIABLE)

40" m/min

RETURN CONVEYOR SIZE

100-3/8"×24-3/4" 32 1/2"(2550×630×825mm)

CONVEYOR HEIGHT FROM FLOOR

40" (1016 mm)

RETURN CONVEYOR MOTOR/INVERTER MOTOR

1HP 3Ø / 2HP 3Ø

SAW WHEEL MOTOR

30HP (option 30 HP )

BLADE LIFT MOTOR

1/2 HP

DUST HOOD OUTLET DIAMETER

100 mm×2 (4"×2)

MACHINE DIMENSIONS (L×W×H)

128"×130"×79" (3250×3300×2000 mm)

PACKING DIMENSIONS (L×W×H)

108"×89"×87" (2750×2250×2200 mm)

NET WEIGHT / GROSS WEIGHT

1960 kgs ( 4312 lbs ) / 2160 kgs ( 4752 lbs)
