Oil Mist Cooling System(Standard Equipment)

  • The machine employs an oil mist cooling system,

    providing high efficiency cooling for the blade.

    It also removes any chips on blade teeth and

    enormously extends service life of blade.
  • Cooling and lubrication time on saw wheel can be

    set as desired.

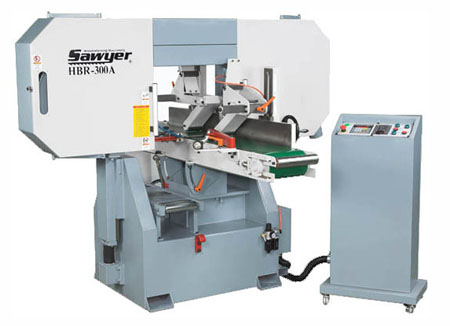

Tilting Feed Conveyor (HBR-300A)
• The feed conveyor can tilt to a maximum of

  30°,front downward for bevel cuts.
• The feed conveyor tilting is made by turning a

  large.
• handwheel for effortless operation.
• A degree scale is attached to indicate the tilting

  degree.

Air Loaded Pressure Roller
• Eliminating the conventional spring laded pressure

  rollers,this machine employs air loaded pressure

  rollers.

• Especially when cutting wood of various

  thicknesses, the air load savestime on adjusting

  pressure roller position while increasing

  operational convenience.
• Pressure roller are easily adjusted in the

  vertical directions.to suit various wood

  thicknesses.
• Maximum pressing thickness is 200mm.

Blade Tension & Tracking
• Blade tension is controlled by air/hydraulic

  combination system,ensuring correct tension

  control at any time.
• Blade tension is indicated by a tension gauge.
• Blade tracking is adjusted by turning a

  handwheel.
