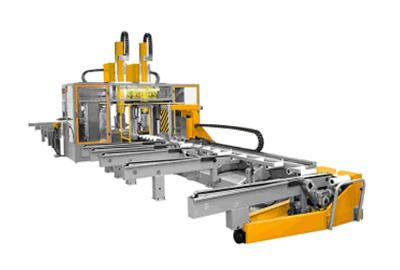

TECHNO PF+BH
TECHNO PF+BH
TECHNICAL DATA:
No. 12 controlled Axes 2X - 4Y – 2Z – 2B - 2C
X-axis stroke mm 2100
Y1-axis stroke in entry mm 5500
Y2axis stroke in exit mm 5500
Z-axis stroke mm 1550
B-axis rotation degrees 260
C-axis rotation degrees 540
Max beam working dimensions mm L unlimitedx400800 (h)
Standar Standard min. beam working dimensions mm 70x70
Optional min. beam working dimensions mm 45x45
X-axis movement speed m/min 70
Y-axis movement speed m/min 100
Z-axis movement speed m/min 32
Electric installation Volts 400/50Hz ± 5%
Air consumption (7 Bar) Nl/min 400
