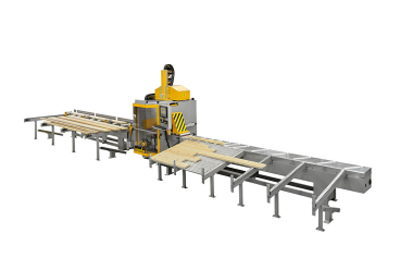

TECHNO SAW
TECHNICAL DATA:
No. 6 controlled Axes X - Y –V- Z – B - C
X-axis stroke mm 1000
Y-axis stroke in entry Continuous
V- axis stroke in exit Continuous
Z-axis stroke mm 900
B-axis rotation degrees 250
C-axis rotation degrees 540
Max board working dimensions mm 6000x450x 150 (h)
X-axis movement speed m/min 100
Y-axis movement speed m/min 150
Z-axis movement speed m/min 50
Electric installation Volts 400/60Hz ± 5%
Air consumption (7 Bar) Nl/min 200
