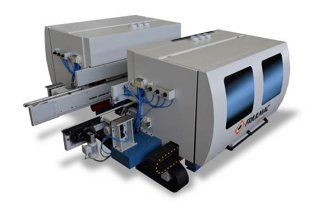

Fully automatic double-end dovetail machine
Fully automatic double-end dovetail machine
Processing size
|
Length:
|
min. 200 (*) mm
|
max. 1000 mm
|
|
Width:
|
min. 70 mm
|
max. 260 mm
|
|
Thickness:度
|
min. 10 mm
|
max. 20 mm
|
|
(*) Min. length see below scketch ;
|
PRODUCTION CAPACITY
Average 10/11 pcs/min. aprox.
The base is engaged by two welded steel arms and two beams to form a support table of the processing unit.
The left support table is fixed, and the right support table is movable. The opening and closing conditions are completed by two TPN screws and driven by a two-speed motor.
There is an electronic digital watch on the control panel that can process up to 60 different lengths of machining.
Vertical clip
The library is a vertical library with adjustable width. The work piece is pushed by two balancing cylinders to the right side of the baffle in the library.
The maximum allowable work piece length error per side is 40mm.
In order to ensure the correct operation and safety of the operator, this library is equipped with a photocell to prevent idling.
Feed system
In order to prevent any possibility of tearing, the transfer of the work piece is carried from the hopper feeder to a single processing station, with the damper brush mounted on the reinforced toothed belt at a fixed pitch position. This part does not require maintenance.
This belt is driven by a brushless motor, spline shaft and crankset
In the transfer phase from one machining unit to the next, the work piece is completely free to adjust.
At the end of each feed cycle, and at each processing station, the work piece is positioned by a vertical invisible fence "from the bottom", after which the vertical pressure from the top locks the work piece, all by Cylinder drive.
Electrical Specifications
Established according to CE rules, other rules are not applicable.
The control panel "touch screen" is on a separate electrical cabinet and includes all the start and indicator lights. Layout and control tags follow security rules.
Technical data
Feed motor
Brushless servo motor
Mechanical adjustment accuracy +/- 0.05 mm
Voltage 400 V/50 HZ
Unit sequence on each side
1^ station: the first processing unit
Horizontal crushing unit "J-4" with 2 axes
Component: A movable machining unit that slides vertically and is mounted on a support column.
X axis
The column/unit group is mounted on a movable base and slides laterally to the work piece.
Y axis
Two axes, X and Y, are driven by a brushless motor and CNC is inserted into the shaft; this movement is achieved by a ball screw on a precision linear guide.
It consists of a steel plate structure, which is assembled by screws and fixed needles, and is responsible for the processing of the dovetail males of the six electronic shaft motors in the horizontal position.
The machining action is set according to the direction of rotation of the tool and is operated on the clamped work piece.
Adjust the machining unit according to the height of the work piece: CNC
Machining unit according to the width of the work piece: CNC
Machining unit according to the length of the work piece: 50 mm
Minimum center distance of the milling bit: 25,4 mm
Tool connection method : ER 16
Motor power : 0,3 kW
Shaft speed : 12/15000 rpm
