GlueMate

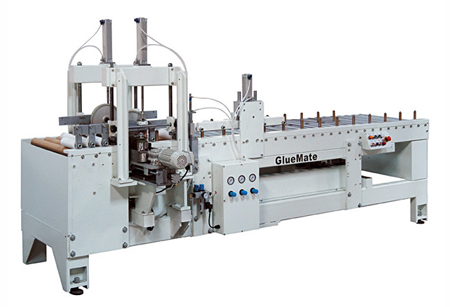

The double sided veneer glue applicator, GlueMate, ensures precise application of adhesive to the edges of veneer bundles eliminating airborne contaminants and operation inconsistency. Both Urea based or PVAc glue work well with GlueMate. Coupled with INNOVATOR's both crossfeed and longitudinal splicers, a perfect veneer splicing job can be achieved.
Standard Accessories:
with cooling system for prolonging glue pot-life as standard equipment
Specification:
|
Model
|
GlueMate
|
|
Veneer Bundle Height
|
5 ~ 30 mm
|
|
Veneer Bundle Length
|
min. 400 mm
|
|
Veneer Bundle Width
|
50 ~ 400 mm
|
|
Feeding Speed
|
approx. 28
|
|
Working Height
|
880 mm
|
|
Electric Power
|
approx. 2 kw
|
|
Compressed Air
|
5 kgs/cm²
|
|
Dimensions ( L × W × H )
|
4100 × 1450 × 1750 mm
|
|
Net Weight
|
approx. 1200 kg
|
|
Color
|
RAL 9016
|
* Technical data is not binding and can be modified without prior notice.
