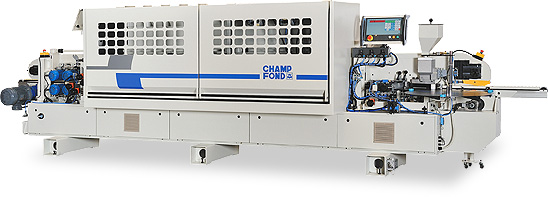

EB-6BW
Specification:
Model
|
EB-2
|
EB-3
|
EB-4
|
EB-4S
|
EB-5B
|
EB-6BW
|
EB-7B
|
EL-70
|
EB-7BQ
|
EB-8BQ
|
Controller
|
NC32
|
NC48
|
Conveyor speed
|
18 M/Min.
|
18 ~ 24 M/Min.
|
Pressure beam Type
|
Roller type
|
Belt type
|
Converyor motor
|
3HP
|
5HP
|
Machine frame length
|
3.5M
|
4.5M
|
5M
|
6M
|
7M
|
8M
|
Pre-mill unit
|
|
|
|
|
|
|
|
●
|
|
|
Q-tools pre-mill unit
|
|
|
|
|
|
|
|
|
●
|
●
|
Sliding type snipping unit
|
|
|
|
|
|
|
|
●
|
|
|
Tacking type snipping unit
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
|
●
|
●
|
Rough trimming unit
|
|
○
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Chamfer trimming unnit
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
2nd Chamfer trimming unit
|
|
|
|
|
|
|
|
|
|
|
Profile scraping unit
|
|
|
|
|
●
|
●
|
●
|
●
|
●
|
●
|
Flat scraping unit
|
|
|
|
|
|
|
|
○
|
|
|
Contour copy unit
|
|
|
|
|
|
●
|
|
|
|
●
|
Sanding unit
|
|
|
|
|
|
|
●
|
●
|
●
|
●
|
Buffing unit
|
|
|
|
●
|
|
|
|
|
|
|
Tape PVC 0.5mm
|
|
○
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
●
|
Tape PVC 0.5mm
|
v
|
v
|
v
|
v
|
v
|
v
|
v
|
v
|
v
|
v
|
Tape veneer 1.0mm
|
v
|
v
|
v
|
v
|
v
|
v
|
v
|
v
|
v
|
v
|
Tape ABS 1.0mm~3.0mm
|
|
|
|
|
v
|
v
|
v
|
v
|
v
|
v
|
Working height
|
12-50mm (Opt. 12-60mm)
|
Minimum working lenth
|
150mm
|
Minimum working lenth
|
150mm
|
Compress air required
|
7-10 kg/cm2(100-147PSI)
|
Net weight
|
2,400 Kg
|
2,500 Kg
|
2,700 Kg
|
2,700 Kg
|
2,800 Kg
|
3,000 Kg
|
3,200 Kg
|
3,200 Kg
|
3,600 Kg
|
4,000 Kg
|
Gross weight, pallet only
|
2,600 Kg
|
2,700 Kg
|
2,900 Kg
|
2,900 Kg
|
3,000 Kg
|
3,200 Kg
|
3,400 Kg
|
3,400 Kg
|
3,800 Kg
|
4,200 Kg
|
●:Standard working unit.
|
○:Optional working unit, subject to available of free space.
|
v:Applicabl jobs with identify materials
|
All specifictions and design characteristics shown are subject to change without prior motice.
|
‧ Rigid heavy duty machine frame, High-performance sniping unit, rough trimming unit, chamfer trimming unit,
scraping unit, grooving unit, contour copying unit and versatile buffing unit.
‧ Capable of speeds up to 30m/min upon request.。
