◆ LOCATION:HOME-PRODUCT

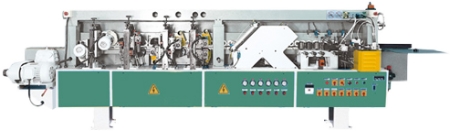

200A-350A

  • Application
    The linear series are designed for edging straight panel with hot melt glue by thru feed system which consists of top pressure rollers and bottom feed chain.
  • The edging material can be of PVC, melamine or veneer in strip or coil.
  • Solid lippings with a maximum thickness of 10mm are also applicable.
  • The easy operated machine is an ideal LINEAR production equipment for those of straight edges, which require small quantities only but various job orders from time to time.
  • Features
    Heavy and rigid constructure to ensure necessary accuracy and stability.
  • To guarantee straight-line feed of the panel, a double row of rubber toothed rollers is off-centered onto top pressure beam and the bottom feed track with rubber calibrated pads is running on cylindrical guide.
  • The top pressure beam is supported with two reinforced columns and equipped with visible linkages for thickness adjustment.
  • The feed of edging material, in strip/coil, is automatic and synchronously with panel feed.
  • The electric and paneumatic system is incorporated in the built-in control cabinets.

Specification:

MODEL

LP-200A

LP-250A

LP-250B

Working size

Panel length

mm(in)

MIN. 140(5-1/2)-UP

Panel width

mm(in)

MIN. 55(2-1/8)-UP

Panel thickness

mm(in)

10(2/5)-50(2-3/8)

Edging thickness

mm(in)

0.4(1/64)-10(2/5)

Feeding system

Feed speed

mpm(fpm)

6-30(20-66)

Rated power

kw(hp)

1.5(2)/2.25(3)

Net weight

kgs(lb)

1000(2200)

1150(2530)

1150(2530)

Gross weight

kgs(lb)

1160(2552)

1330(2926)

1330(2926)

Machine size

mm(in)

2940×800×1415
(116×32×56)

3440×800×1415
(115×32×56)

3440×800×1415
(115×32×56)

Packing size

mm(in)

3090×910×1640
(122×36×65)

3590×910×1640
(141×36×65)

3590×910×1640
(141×36×65)


MODEL

LP-300A

LP-300B

LP-350A

Working size

Panel length

mm(in)

MIN. 140(5-1/2)-UP

Panel width

mm(in)

MIN. 55(2-1/8)-UP

Panel thickness

mm(in)

10(2/5)-50(2-3/8)

Edging thickness

mm(in)

0.4(1/64)-10(2/5)

Feeding system

Feed speed

mpm(fpm)

6-30(20-66)

Rated power

kw(hp)

1.5(2)/2.25(3)

Net weight

kgs(lb)

1300(2860)

1300(2860)

1450(3190)

Gross weight

kgs(lb)

1510(3322)

1510(3322)

1685(3707)

Machine size

mm(in)

3940×800×1415
(155×32×56)

3940×800×1415
(155×32×56)

4520×800×1415
(178×32×56)

Packing size

mm(in)

4090×910×1640
(161×36×65)

4090×910×1640
(161×36×65)

4670×910×1640
(184×36×65)
