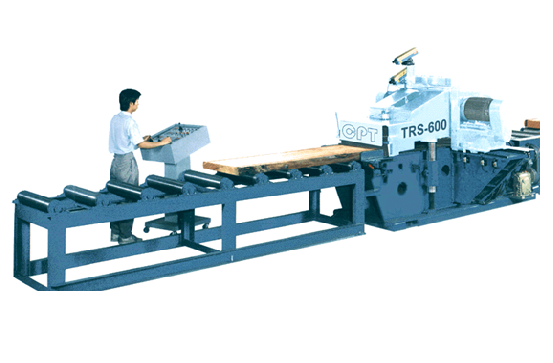

TRS-600
|
|
Cutting thickness
|
10-170mm
|
|
Maximum infeed width
|
750mm
|
|
Minimum length of cut
|
600mm
|
|
Maximum cutting width
|
600mm
|
|
Saw adjustment distance
|
610-50mm
|
|
Sawblade diameter
|
Ø455mm (18")
|
|
Saw spindle diameter
|
Ø40mm
|
|
Feed speed (Variable)
|
7.5-30M/min (50Hz), 9-36M/min (60Hz)
|
|
Spindle speed
|
2800RPM (50Hz), 3200RPM (60Hz)
|
|
Saw drive motor
|
20HP-30HP × 2
|
|
Head elevation motor
|
1/2HP
|
|
Saw adjustment motor
|
1/2HP × 2
|
|
Feed drive motor
|
3-5HP
|
|
Dust hood outlet diameter
|
Ø100mm(4") × 4
|
|
Front roller conveyor size
|
680 × 2750mm
|
|
Rear roller conveyor size
|
680 × 3180mm
|
|
Machine dimensions (L×W×H)
|
3250 × 2500 × 1950mm
|
|
Packing dimensions (L×W×H)
|
33707450 × 2620 × 2170mm
|
|
oller conveyor packing weight
|
1500kgs
|
|
Front roller conveyor weight
|
470kgs
|
|
Rear roller conveyor weight
|
650kgs
|
|
Net weight
|
(approx) 4600kgs
|
|
Gross weight
|
(approx) 5600kgs
|
