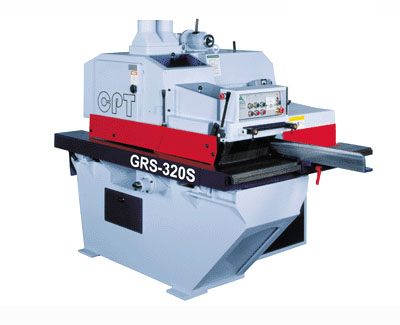

GRS-320S
|
|
Maximum cutting thickness
|
130mm
|
Sawblade bore diameter
|
Ø70mm
|
|
Maximum cutting width
|
320mm
|
Spacing collar diameter (I.D./O.D.)
|
Ø70mm/95mm
|
|
Minimum length of cut
|
760mm
|
Spindle speed
|
3200RPM（50HZ）
|
|
Short limit ratio thickness per length
|
80mm
|
Saw drive motor
|
30HP，50HP，60HP，75HP
|
|
Short limit ratio thickness per length
|
2：5
|
Feed speed motor
|
2HP，3HP
|
|
Sawblade diameter
|
Ø355(10-105),
Ø405(10-130)mm
|
Head elevation motor
|
1/4HP
|
|
Saw spindle diameter
|
Ø55mm
|
Dust hood outlet diameter
|
Ø152mm（6〃）×2
|
|
Sawblade keyway
|
20mm（width）×2
|
Table area (L×W)
|
1800×880mm
|
|
Minimum length of cut
|
80mm
|
Table height from floor
|
850mm
|
|
Feed speed (variable)
|
9-36M/min
|
Machine dimensions (L×W×H)
|
2300×1500×1600mm
|
|
Feed track width
|
335mm
|
Packing dimensions (L×W×H)
|
2400×1700×1900mm
|
|
Gross weight
|
（approx）2600kgs
|
Net weight
|
(approx）2150kgs
|
