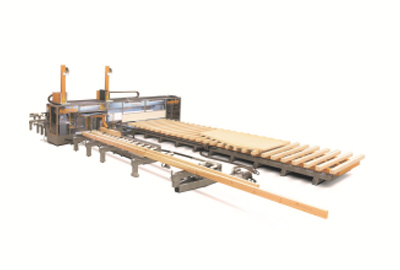

Techno PROGRESS
Techno PROGRESS
TECHNICAL DATA:
Nr. 10 controlled axis X–6Y–Z–B-C
X axis stroke mm. 6500
Y1 axis stroke at the entry (pliers) mm. 5500
Y2 axis stroke at the exit (pliers) mm. 5500
Y5 axis stroke at the entry and at the exit mm. 6000
Z axis stroke (5 axis) mm. 1550
B1 axis rotation degrees 260°
C1 axis rotation degrees 540°
Maximum beam working dimensions:
Maximum length mm. 13.500
Maximum height mm 800
Maximum width mm 400
Minimum section width 70x70
(Optional 45x45)
Maximum wall working dimensions:
Maximum lenght mm. 13.500
Maximum width mm 2.000
Maximum thickness mm 200
X-axis movement speed mt/1’ 70
Y1 Y2 axis movement speed Y1Y2 mt/1’ 100
Y5 movement speed mt/1’ 50
Z axis movement speed mt/1’ 32
Electric installation Volts 400/50Hz ± 5%
Air consumption (7 Bar) Nl/min 800
