G-320A
●Cutter rotation is automatically controlled by PLC for high accuracy.
●Grinding head movement is automatically controlled by PLC, ensuring high
grinding accuracy.
●Humanified touch-sensing screen allows for convenient operation.
●Multiple micro-switches protection upgrades operational safety.
●Hydraulic system controls the slide movement rightward / leftward, featuring
maximum stability.
●Automatic or manual movement of slide is quick to change.
●The entire machine is thoroughly protected by safety guards to achieve higher
safety.
●Fast cutterhead change saves considerable time while upgrading efficiency.
●The control panel offers simple setting of tool parameters that saves cutter
setting time.
●Movable working light for added convenience.

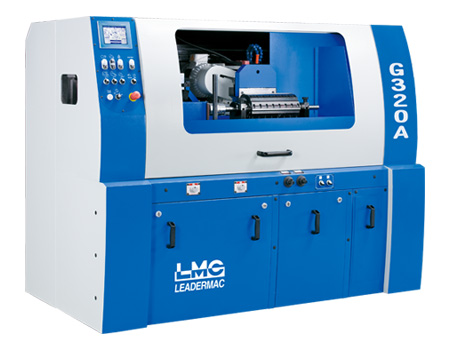

G320A
-
Automatic Cutter Grinder
The Grindermac G320A automatic cutter grinder is an advanced grinder,
-
featuring fully automatic grinding operation.
-
With the PLC control, high grinding accuracy is obtainable.
|
|
|
Grindinfg wheel dressing
|
|
|
Multiple tracing rods allow for accurate and convenient grinding.
|
|
|
|
|
|
Straight knife grinding
|
|
Straight knife grinding
|
|
|
Specification:
|
|
|
MODEL
|
G320A
|
|
Maximum length of cutterhead
|
|
|
Conventional cutterhead (by nut locking)
|
320 mm (12.6")
|
|
Hydraulic cutterhead (by hydraulic bushing locking)
|
320 mm (12.6")
|
|
Max. diameter of cutter
|
320 mm (12.6")
|
|
Min. diameter of cutter
|
125 mm (5")
|
|
Max. knife numbers
|
32
|
|
Grinding wheel
|
|
|
Diameter
|
175 mm (6.9")
|
|
Bore
|
25 mm (1")
|
|
Spindle speed
|
3000 rpm Max
|
|
Motors
|
|
|
Grinding wheel arbor
|
1.5 Kw (2 HP)
|
|
Coolant pump
|
0.094 Kw (0.125 HP)
|
|
Hydraulic motor
|
0.75 Kw (1 HP)
|
|
Cooling system
|
|
|
Coolant tank capacity - Max.
|
28 liters (6.15 gallons)
|
|
Coolant tank capacity - Min.
|
16 liters (3.5 gallons)
|
|
Machine Dimensions
|
|
|
Length
|
1905 mm (75")
|
|
Width
|
1100 mm (43.3")
|
|
Height
|
1500 mm (59")
|
|
Worklamp
|
20 w
|
|
