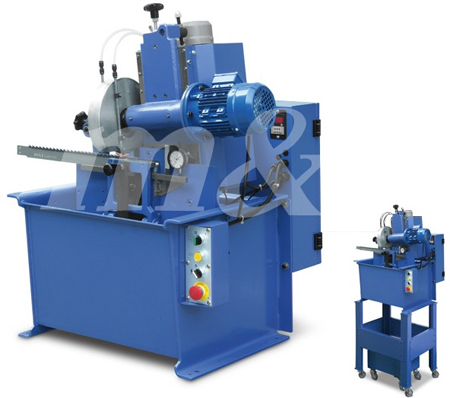

G-20
Designed to Maximize Blade Service Life While Minimizing Blade Consumption.
-
● The wet grinding feature assures extremely fine finish on teeth surfaces and greatly extends cutting period of saw blade.
-
● Grinding amount adjustment is accurately indicated by dial gauges.
|
|
High precision blade feed mechanism ensures accurate fine grinding and reduces grinding loss to a minimum.
|
|
|
Front Tack Angle Adjustment On Same Axis(Patented)
Easy to adjust the front rake angle without affecting teeth profile and other adjustments.
|
|
|
|
|
|
Big Range Adjustment for Blade Sizes
Range of blade width: 25mm~100mm.
Range of tooth pitch: 12mm~32mm.
|
|
|
Precision Spindle
The spindle runs in high speed a precision bearing, which assures teeth accuracy and increased blade life.
|
|
|
|
|
|
Teeth Number Setting
Grinding teeth setting is fast and it’s made by the external mounted setting device.
|
|
|
Convenient, Fast Blade Clamping Mechanism
The performance of the blade clamping mechanism may affect feed accuracy and finish of grinding surface.
|
Specification:
|
MODEL
|
G-20
|
|
Motor
|
1/2 HP, 1/4 HP, 1/8 HP
|
|
Blade thickness
|
<2 mm
|
|
Blade width
|
25-100 mm
|
|
Blade length
|
Unlimited
|
|
Tooth pitch
|
12-32 mm
|
|
Tooth height
|
≤ 8 mm
|
|
Front rake angle
|
5-15 Degrees
|
|
Working speed
|
6 Sec./tooth
|
Frame Saw Blade
|
Blade Specification
|
G-20
|
|
Material
|
S, L, M, H, T, C
|
|
Blade length
|
420, 500, 550 mm
|
|
Blade height
|
40, 45 mm
|
|
Cuting loss
|
0.9, 1.0, 1.1, 1.25, 1.4, 1.6 mm
|
|
Tooth pitch
|
13, 15, 20 mm
|
All specifications, dimensions, and design characteristics shown in this catalog are subject to change without previous notice.
