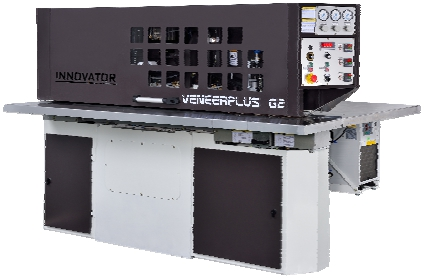

VeneerPlus G2
Item 2: Veneer veneer longitudinal stitching machine (built-in automatic glue coating system)
Model: VeneerPlus G2 (original automatic cloth LVS-1250PLUS)
Mechanical specifications
Veneer thickness (actual splicing thickness depends on veneer quality): approx. 0.5 ~ 5.0 mm
Vene length: minimum 350 mm
Veneer width: minimum 45 mm
Stitching speed: about 8 ~ 45 m / min (actual stitching speed depends on the thickness of the veneer)
Electricity: about 7.5 kw
Compressed air: 5 bar
Stitching temperature: 100 ~ 220 °C
Heating section length: 1500 mm
Mechanical dimensions (L x W x H): 2550 x 2100 x 1600 mm
Mechanical net weight: about 1550 kg
Body color: RAL 8019 / RAL 9003
Both VeneerPlus G2 and VeneerPlus G1 have a specially designed automatic gluing system. VeneerPlus G2 is a model specially designed for thick veneer splicing manufacturers. It can be automatically brought through special feeding design and improved gluing system. Gluing function splicing veneer up to 5 mm thick. The user transports the veneer whose edge has been flattened (90 degrees without burrs) to the specially designed roller feed system of the VeneerPlus G2. The feed roller automatically aligns the veneer and transports it to the built-in automatic glue application. system. After the automatic gluing section is completed, it is sent to the heating zone of the rear section to make the veneer coating and splicing process complete once in a single machine, which can effectively avoid the uneven coating surface caused by manual gluing. The specially designed pressurizing and heating mechanical structure makes the spliced solid wood veneer tightly combined and the joints are seamless and without glue lines, which is suitable for high-grade furniture and decorative plywood. Use the Longde veneer veneer double cutter. CutMate D series ensures the parallelism of the veneer after cutting to achieve 100% stitching.
Characteristics
Precise control of chain pressure using special cylinders
Mechanical design fully complies with European safety regulations
Additional automatic cooling system to extend glue usage time
The upper base is precisely controlled by cylinders and linear guides.
Glue rubber adjustment sheet can adjust the amount of glue on the edge of the veneer at the right time
Built-in high-capacity plastic box with fine-tuning high-speed motor drive
Using a special roller structure to make the veneer into a wider range of thickness
The total electricity consumption is low and the heating section is narrow, which effectively reduces the deformation of the veneer
Sturdy and stable body design ensures stable and non-vibrating body when splicing
The upper and lower thermal insulation strips are all made of chrome, making cleaning and maintenance easier.
The feed section is equipped with a reflective photoelectric sensor to precisely align the splicing veneer
Applicable to the splicing of vertical solid wood veneer, different from the traditional sewing machine
Using a pressure-regulating feeding roller structure for thick veneer to make the veneer conveying smoother
Using thermosetting glue to improve the stitching effect, effectively avoiding the production of glue lines at the joints
Built-in automatic glue coating system can efficiently apply glue on the edge of veneer, saving manpower and time to improve production efficiency
VeneerPlus G2
The upper and lower drive chain drives the gear motor with the inverter to control the running speed, and the lower drive chain uses the wear-resistant guide rail to extend the service life.
The whole series adopts Germany imported FESTO pneumatic system, which is a world-famous top brand, which is convenient for parts and after-sales service.
Special engineering plastic drive chain replaces traditional stainless steel chain, effectively reducing the amount of deformation caused by the high temperature of the heating block during veneer splicing
The heater uses a solid-state relay to replace the traditional electromagnetic switch, precisely control the temperature and the contact is non-sparking. The electromagnetic interference is smaller than the traditional electromagnetic switch, and the service life is longer.
“Front feeding baffle positioning device” makes the feeding more smooth when the veneer is more than 1.5 mm thick
