◆ LOCATION：HOME-PRODUCT

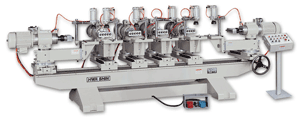

Machine HS-503-506

FEATURES:

  • ·3HP motor direct drive mechanism.
  • ·Horizontal 360° swivel drill head.
  • ·Safety air clamps and magnetic switch.
  • ·Easy adjustment for height and depth.
  • ·Air-hydraulic system. The distance between drills can be fixed.

SPECIFICATION:

MODEL

HS-502

HS-503

HS-504

HS-505

HS-506

Motor

3HP × 2

3HP × 3

3HP × 4

3HP × 5

3HP × 6

Spindle speed

3400rpm/60HZ, 2800rpm/50HZ

Drill bit size

(M8 or M10) × 32mm × 5 holes

Stroke distance

0-80mm

Max. working length

2100mm(opposite), 2900mm(parollel)

Pressure

6kg/cm²

Packing size

3200×1040×1320mm(126"×41"×52"),3200×1160×1320mm(126"×45"×52")

N.W. (lbs/kg)

650kgs

750kgs

850kgs

950kgs

1050kgs

G.W. (lbs/kg)

850kgs

950kgs

1050kgs

1150kgs

1250kgs



* Specifications subject to change without prior notice.
