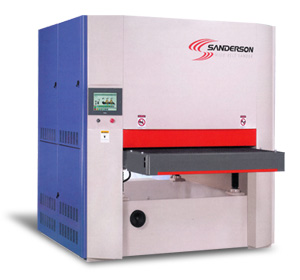

The series of SDH segmented pad sander with following features: ●Automatic memory modular design ●Electronic segmented pad control ●The individual component of pressure controlling system ●Automatic positioning and preset parameter ●Pressure can be applied in accordance with different edge Optional features:： ●Sanding belt speed controlled by inverter ●Feeding speed controlled by frequency inverter ●Conveyor table with vacuum system ●Belt cleaning device ●Nylon polish roller for cleaning dust on the workpiece
The series of SDH segmented pad sander with following features:
Optional features:：
Specification:
103" / 150mm
SDH-2-1300
SDH-3-1300
Max. working width
1300 mm
Max. working height
150 mm
Main spindle motor
25HP, 20HP
25HP, 25HP, 20HP
Feed motor
3 HP
Table lifting & lowering motor
1 HP
Brush Roller Motor
1/2 HP
Feed speed
0~18 M/min
Size of sanding belt
1346 × 2620 mm
Dust exhausted
9100 M³/hr
13700 M³/hr
Compressed air consumed
0.35 M³/min
0.50 M³/min
Packing size
(L)2500mm, (W)2270mm,(H)2470mm
(L)3050mm,(W)2270mm,(H)2470mm
Net weight
5500 kgs
7100 kgs
Gross weight
5950 kgs
7650 kgs
※Design and specifications are subject to change without prior notice.
