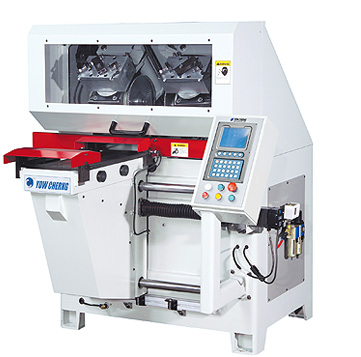

Machine YC-TF7
Application:
The YC-TF7 is designed for cutting tenons for door and window frames. Also ideal for cutting tenons for other furniture parts.
Machine Features:
-
1.The machine consists of one set of tenoning head and two sets of saw heads.
-
2.The entire machine motions are controlled by a CNC controller, providing easy operation.
-
3.Right and left movement of table is driven by a servo motor combined with ball screw transmission featuring fast travel and high accuracy positioning.
-
4.Automatic 90° sawhead rotation rotation is actuated by swing cylinder.
-
5.Wood is clamped by air cylinders.
-
6.Sawblade elevation is driven by air cylinder.
-
7.Fast motion cycle. High efficiency. High productivity.
|
CNCControl Easy To Opprate
-
•This machine employs a CNC control for maximum convenience of operation.
|
|
|
|
Double Saw Heads
-
•Each saw head is independently driven by a motor.
-
•Both saw heads automatically rotate 90°. 90°。
|
Specification:
|
Model
|
YC-TF7
|
|
Capacity
|
|
Wood length
|
600~2500 mm
|
|
Wood width
|
130~305 mm
|
|
Wood thickness
|
30~50 mm
|
|
Sawhead
|
|
Sawblade sizes
|
Ø250×3 mm
|
|
Saw arbor diameter
|
Ø1"
|
|
Sawblade speed
|
2800 RPM
|
|
Sawblade motor
|
3 HP×2 个
|
|
Sawhead rotation
|
90°
|
|
Cutterhead
|
|
Cutter diameter
|
Ø200 mm
|
|
Cutter arbor diameter
|
Ø40 mm
|
|
Cutter speed
|
5600 RPM
|
|
Cutter motor
|
5 HP
|
|
Table
|
|
Table feed motor
|
1 HP (servo)
|
|
Miscellaneous
|
|
Working air pressure
|
6 kg/cm²
|
|
Machine dimensions (LxWxH)
|
1300×1700×1500 mm
|
|
Net weight
|
850 kg
|
|
Gross weight
|
950 kg
|
• Specifications and design characteristics are subject to change without prior notice.
