Outstanding Features:

1. 1.This highly productive mortiser is designed for producing various mortises simultaneously.
2. 2.Flexible head combination to meet specific job requirements.
3. 3.Double tables on front and back sides, permitting both sides operations for increased efficiency.
4. 4.Cutter speeds are frequency inverter controlled, providing variable speeds change.
5. 5.The entire operation motions are conveniently controlled by simply pressing the foot switch.
6. 6.Each carriage is adjusted independently.
7. 7.Two speeds cutter oscillation permits high/low speed change.
8. 8.Carriages slide on big steel rods. High speed cutter oscillation features maximum stability.
9. 9.Mortise width and depth are adjustable.
10. 10.The machine is designed for both mortising and drilling functions.
11. 11.Carriages are well constructed for adjusting mortise width independently.

Mortising Head

• •Mortising head is directly driven by an independent 1.8HP motor. Two cutters fitted on both ends of spindle perform both sides mortising simultaneously.
• •Mortising head position can be adjusted in right/left, up/down directions.
• •Collet chuck clamps /unclamps the cutter for quick tool change.

Carriage

• •The machine is constructed of three tilting carriages and one horizontal carriage. Each carriage can be fitted with one or two mortising head as customer's requirement.
• •Each carriage can be tilted independently. Maximum tilting angle is 20°.

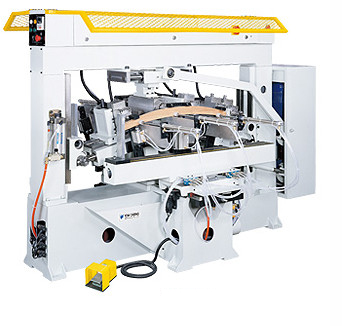

• •Picture shown model YOM-4 is equipped with three tilting carriages and one horizontal carriage.

Variable Cutter Speed

• •The cutter running is controlled by a high performance frequency inverter, permitting for variable speeds adjustment. Wide speed range is from 6,000 to 12,000 RPM. 6000~12000RPM。

Control Panel

•All of machine motions are grouped in one control panel for operation convenience, including cutter oscillation, motor ON/OFF control, and clamping cylinder control etc.

Independent Mortising Head Control

• •Each mortising head is controlled by an independent switch. The operator may adjust mortise position as desired for maximum flexibility.

•Specifications and design characteristics are subject to change without prior notice.
