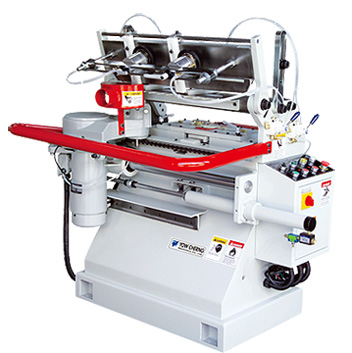

YC-480A Continuous Dovetailer
YC-480A
• For Straight Board / Curved Board
• Maximum workpiece sizes: width 480 mm
Outstanding Features:
1 Cuts dovetailed tenons/mortises simultaneously for accurate jointing.
2 Dovetailed width and depth are adjustable.
3 Continuous tenoning motion.
4 Automatic motion cycle provides efficient, economical operation.
5 High spindle speed 20,000 R.P.M.
6 Simple to operate, simple to maintain.
7 3 feed speeds change suitable for cutting various wood materials.
8 Convenient efficient operation
The machine permits for two operators' operation. Entire motion sequences are automatically operated except for clamping and unclamping of workpieces.
|
|
Rugged Guide Rod
● Tenoning head feeds on an oversized guide rod, hard chrome plated, for maximum stability of tenoning operation and maximum wear resistance.
|
|
|
Centralized Control Panel
● All of the machine motion controls are centralized on one control panel for operation convenience. Control functions include single start/stop, feed start/stop, manual/automatic mode selection.
|
|
|
Stable Tenoning Head
● The tenoning head is driven by a 2HP motor with 20,000 R.P.M. high spindle speed. Cutter bit can be micrometrically adjusted for tenon/mortise width.
|
|
|
Replaceable Mold. Easy for Maintenance
● Easily clean the wood chips inside the molds by only taking off the two dust-proof covers.
|
|
Automatic Lubricator
● With automatic lubricator provide YC-480 longer life.
|
Specification:
|
Model
|
YC-480A
|
|
Tenon thickness
|
Min.8 mm, Max.20 mm
|
|
Tenon width
|
Min.7 mm, Max.18 mm
|
|
Tenon depth
|
Min.10 mm, Max.30 mm
|
|
Spindle vertical adjustmen
|
30 mm
|
|
Maximum workpiece sizes
|
tilting
|
|
Collect chuck capacity
|
Length 1500 mm, Width 480 mm
|
|
Numbers of air clamps
|
Ø12 mm
|
|
Spindle speeds
|
4 PCS
|
|
Spindle speeds
|
21,500 R.P.M.
|
|
Spindle motor
|
2 HP
|
|
Working air pressure
|
5 kg
|
|
Dust hood outlet diameter
|
60 mm
|
|
Frequency inverter
|
Optional
|
|
Machine dimensions (LxWxH)
|
1270 × 780 × 1330 mm
|
|
Packing dimensions (LxWxH)
|
1420 × 910 × 1450 mm
|
|
Net / Gross weight
|
410 / 460 kgs
|
• Specifications and design characteristics are subject to change without prior notice.
