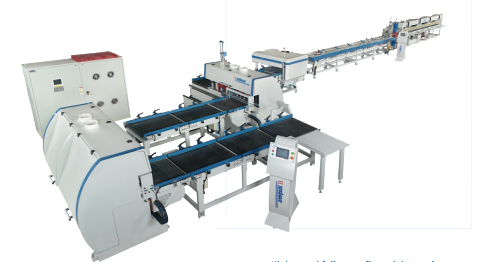

SAT-660F
Specification:
|
MODEL
|
SAT-660F
|
|
MACHINE WIDTH
|
ADJUSTABLE WIDTH: W=620MM~660MM
|
|
MACHINE LENGTH
|
SINGLE TABLE: L=990MMx2, TOTAL LENGTH 2000MM
|
|
CONVEYER HP
|
0.375KW+1:10
|
|
FEEDING SPEED
|
35M
|
|
WORKING WIDTH
|
ADJUSTABLE WIDTH: W=620MM~660MM
|
|
WORKING LENGTH
|
L=130MM~800MM
|
|
WORKING HEIGHT
|
H=15MM~150MM
|
|
FEEDING SPEED
|
35MM
|
|
TABLE MOVEMENT POWER, HP
|
4KW+1:5
|
|
CONVEYER POWER
|
0.375KW+1:10
|
|
MOTOR SHAFT POWER
|
15KW
|
|
SIZE OF FINGER CUTTER
|
50MMx160MMx3T
|
|
POWER OF CUT-OFF & SCORING SAW
|
5.625KW
|
|
SIZE, MAIN CUT-OFF SAW
|
255MMx100Tx5MM
|
|
SIZE, SCORING SAW
|
160MMx50Tx5MM
|
|
NUMBER OF WORK CYCLES
|
4~6 CYCLE/MIN
|
|
WORKING PNEUMATIC PRESSURE
|
6KG/cm²
|
|
DUST OUTLET DIAMETER
|
8 INCHES
|
|
WORKING WIDTH
|
ADJUSTABLE WIDTH: W=620MM~660MM
|
|
WORKING LENGTH
|
L=130MM~800MM
|
|
WORKING HEIGHT
|
H=15MM~150MM
|
|
FEEDING SPEED
|
35MM
|
|
GLUE APPLIER, POWER
|
6KG/cm²0.375KW
|
|
RPM, GLUE APPLIER
|
20L
|
|
PNEUMATIC WORKING PRESSURE
|
6KG/cm²
|
|
HYDRAULIC WORKING PRESSURE
|
OPERATION PRESSURE:30KG~80KG
|
|
DUST OUTLET DIAMETER
|
4"
|
Note: the company at any time to research to improve work, dimensions to change, without notice.
Dimensions and specifications shown in the catalogue are subject to change without prior notice.
