PRODUCT
◆ LOCATION：HOME-PRODUCT

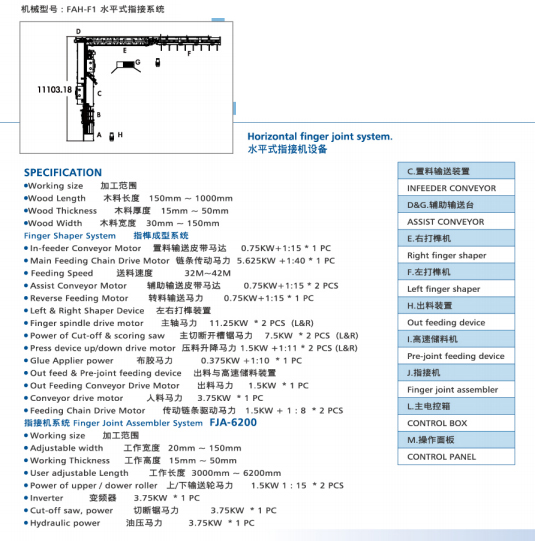

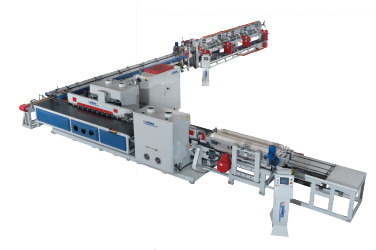

FAH-FI



　 　 　

Specification:

MODEL

BJ-2000

Working Size

Wood Length

300mm ~ 2000mm

Wood Tickness

6mm ~ 50mm

Wood Width

30mm ~ 190mm(extra310)

Packing dimension (L×W×H)

760×690×1700 mm

Main Axle Specification

RPM

L – 1 EACH R – 1 EACH

Main Motor

15HP – 2 EACH

RPM

6800 rpm / min

Tube

50mm

Knife size

50mm × 160mm

Trimming Specification

Motor

5HP – 2EACH

Saw Quantity

L – 1 EACH R – 2 EACH

RPM

4275 rpm / min

Blade Size

255mm×100T×50mm 2EACH

CHIPPING SAW DIMENSION

250mm×12T×25.4mm

Saw Quantity

Under saw – 2 EACH Top Saw – 1 EACH

Scoring Specification

Motor

2HP – 3EACH

RPM

2850 rpm / min

Blade Size

180mm×60T×25.4mm 3- EACH

Motor

2HP – 3 EACH

Clamp up-downward

Motor

7.5HP – 1EACH

Chain Transmit

Turbine Reduce Motor

1 : 40

Converter

7.5HP

Feed Transmit

1HP – 2EACH

Note: the company at any time to research to improve work, dimensions to change, without notice.
Dimensions and specifications shown in the catalogue are subject to change without prior notice.
