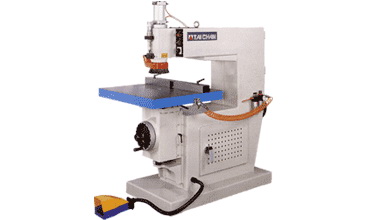

SLIDING HEAD ROUTER TR-750
SPECIFICATION
|
Model
|
TR-750
|
|
Chuck to table top maximum
|
8-1/4" (210mm)
|
|
Throat clearance
|
29-1/2" (750mm)
|
|
Drive motor
|
3HP (5HP, 7.5HP optional)
|
|
Table size
|
28" × 32"
|
|
Table tilt
|
45°
|
|
Spindle stroke
|
3-1/8" (80mm)
|
|
Spindle speeds
|
10,000/20,000 R.P.M.(2 speeds)(only 3 phase available)
|
|
Collet sizes
|
12mm
|
|
Machine size
|
60"(L) × 32"(W) × 67"(H)
|
|
Packing size
|
66"(L) × 36"(W) × 74"(H)
|
|
Net weight
|
600kgs
|
|
Gross weight
|
700kgs
|
