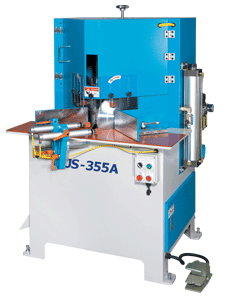

NOTCHING SAW FOR ALUMINUM JS-355A
FEATURES:
● Sawblades feed vertically. Maximum height of cutting is 180mm.
● Two staggered sawblades are positioned at 45° vertically to reduce workpiece waste to a minimum.。
● Automatic oil mist cooling for sawblades during cutting.
● Vertical and horizontal workpiece clamping design ensures extremely firm clamping.
● Permit workpiece stack cutting for greatly upgrading efficiency.
● Sawblades move vertically on two precision shafts, assuring consistent cutting.
● Compensation for sawblade wear is easy to adjust.
● Sawblade height is adjustable for saving time of cutting.
Specification:
Model
|
JS-355A
|
Cutting angle
|
Notch 90°
|
Cutting depth
|
135mm × 135mm
|
Cutting height
|
180mm
|
Sawblade sizes
|
Ø14"× Ø 1" × 3.0mm ×120T
|
Spindle speed
|
3200 RPM
|
Spindle motors
|
3HP × 2
|
Clamping cylinders
|
4 Vertical clamps 2 Horizontal clamps
|
Cutting method
|
Staggered blades Vertical cutting
|
Table height
|
850mm
|
N.W. / G.W.
|
430 / 500 kg
|
Machine dimensions
|
1000 × 1020 × 1580mm
|
Packing dimensions
|
1200 × 1090 × 1830mm
|
