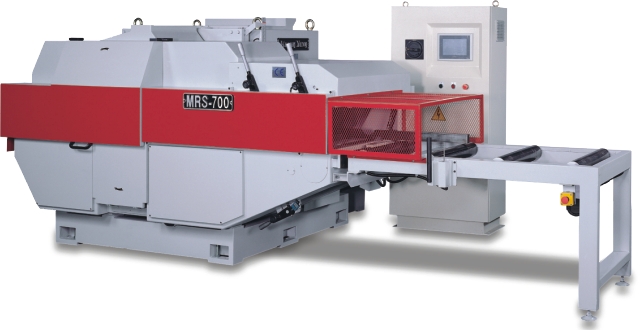

MRS-700
DOUBLE ARBOR MULTIPLE RIP SAW
Characteristic:
Max. cutting thickness 220 mm(8.7").
Max. cutting width 350 mm(14").
Touch-sensing screen.
Saw arbor motor 2 x 50,60,75,100 or125HP.
Specification
|
MRS-700
|
|
Max. cutting thickness
|
220mm(8.661")
|
|
Max. cutting width
|
350mm(13.779")
|
|
Distance from column to link chain center
|
345mm(13.583")
|
|
Mini. working length
|
900mm(35.433")"
|
|
Max. sawblade diameter
|
Dia. 350mm(14")
|
|
Mini. sawblade diameter
|
Dia. 250mm(10")
|
|
Sawblade bore
|
Dia. 70mm (2.756")
|
|
Saw arbor diameter
|
Dia. 55mm(2.165")
|
|
Saw arbor speed
|
3500 rpm
|
|
Saw arbor motor
|
2 × 50. 60. 75. or 100HP
|
|
Variable feed speed (for electrical amperage display)
|
4-25 M/min (13"-82"/min)
|
|
Feed motor
|
5HP
|
|
Hold down roller elevating motor
|
1HP
|
|
Table area (LxW)
|
2630mm(104") × 750mm(29")
|
|
Mechanical maximum size (LxW)
|
2700×2400×1620mm (106"×94"×64")
|
|
Packing dimensions (LxWxH)
|
2970×2520×1900mm (117"×99"×75")
|
|
Net weight
|
5150 kgs
|
|
Gross weight
|
5600 kgs
|
