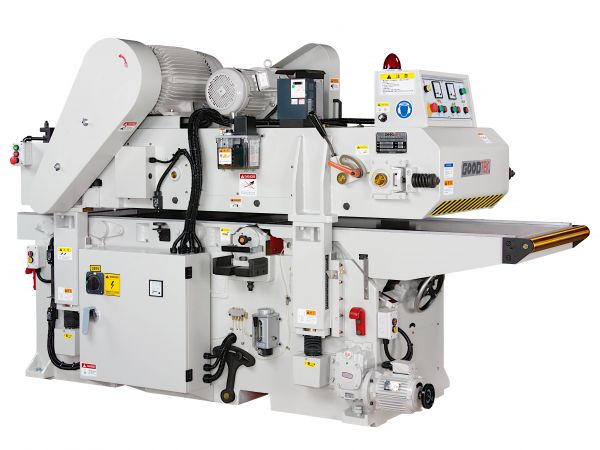

Double surface planer GT-610A

GT-610A double surface planer

• Working width610mm (24")

• Quick thickness setting device

• Equipped with a plain cutterhead

• Slideways are lubricated by centralized hand lubricator

• Feeding inverter with an additional gear reducer

STANDARD ACCESSORIES：

• Well laid-out pressure spikes

• Fast knife replacement

• Fast and convenient belt tension adjustment.

• Automatic lubricator

• Feeding inverter

• Gear reducer

• Quick thickness setting(610A,635ARDstandard equipment on models，Optional for other models)

• Centralized hand lubricator(standard equipment on models GT-610A and GT-635ARD only. Optional for other models)

• The four table rollers provide superior feeding performance

• Standard Y-delta motor starting

• Quick belt change for bottom cutterhead

• Automatic lubrication for feeding chain

• Automatic lubricator provides convenient lubrication to caterpillar chain slideways

• An air wrench is applied for removing or installing knives and saves knife change time.

• Optional spiral cutter head for the upper and lower cutter heads

• The table surface is hard chrome plated and precision ground for extremely smooth feeding and maximum wear resistance

• The dovetailed slideways on the table elevation assure outstanding rigidity and stability

• Sectional infeed rollers


	Well Laid-out pressure spikes
	The pressure spikes are in an overlapped layout with a minimum of gaps that hold the workpiece firmly and evening ensuring shake-free feeding, even for short workpiece.

	Rear control device
	Instant response and emergency stop to any abnormality, or just to stop/start the feeding, and provide the operator at the rear to perform on-site height adjustment of machine.

	Gear reducer
	Reduce wear caused by temperature rise and improve efficiency of power transmission.

	Feeding inverter
	Digital display and quick operation to reduce wear on mechanical gearbox.

	Quick thickness setting
	Fast and convenient thickness setting can be achieved by simply placing a wood sample of identical thickness under the micro switch.(standard equipment on models 610A and 635ARD only. Optional for other models.)

	Centralized hand lubricator
	A centralized hand lubricator is provided for conveniently lubricating the elevation slideways. (standard equipment on models 610A and 635ARD only. Optional for other models.)

Specification

Model	GT-610A
Maximum Width Of Cut	610mm ( 24" )
Maximum Thickness Of Cut	200mm ( 8" )
Minmum Thickness Of Cut	10mm
Minmum Lenght Of Cut	310mm
Knife Nos. On Bottom Cutterhead	4pcs
Knife Sizes	610x3x30mm(24"x1/4"x1-1/2")
Cutterhead Diameter	Ø126mm
CutterHead Speed	4000RPM
Variable Feed Speed	8-24m/min
Dust Hood Outlet Diameter	6" x 2
Table Surface Area	27"x103"
Top Cutterhead Drive Motor	20(25)HP
Buttom Cutterhead Drive Motor	15(20)HP
Feed Drive Motor	3HP
Upper Mechanism Elevation Motor	1/2HP
Machine Dimensions(LxWxH)	2700x1145x1720mm
Net Weight	3000kg
Packing Dimensions(LxWxH)	2780x1240x1940mm
Gross Weight	3500kg

※ To ensure technological excellence, specifications are subject to change without prior notice。
